50" Fans Ventilation System for Automatic Poultry Broiler Breeder Farm Equpment
Automatic Poultry House:
| Poultry house | Specification |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel |
| Secondary Frame | Purling | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel |
| Tie Rod | Q235 Circular Steel Pipe |
| Brace | Q235 Round Bar |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance System Purling | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel |
| Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall panel | Sandwich Panel / Corrugated Steel Sheet/steel wire |
| Accessories | Window | Aluminum Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rain spout | PVC |
Automatic Poultry Keeping system:

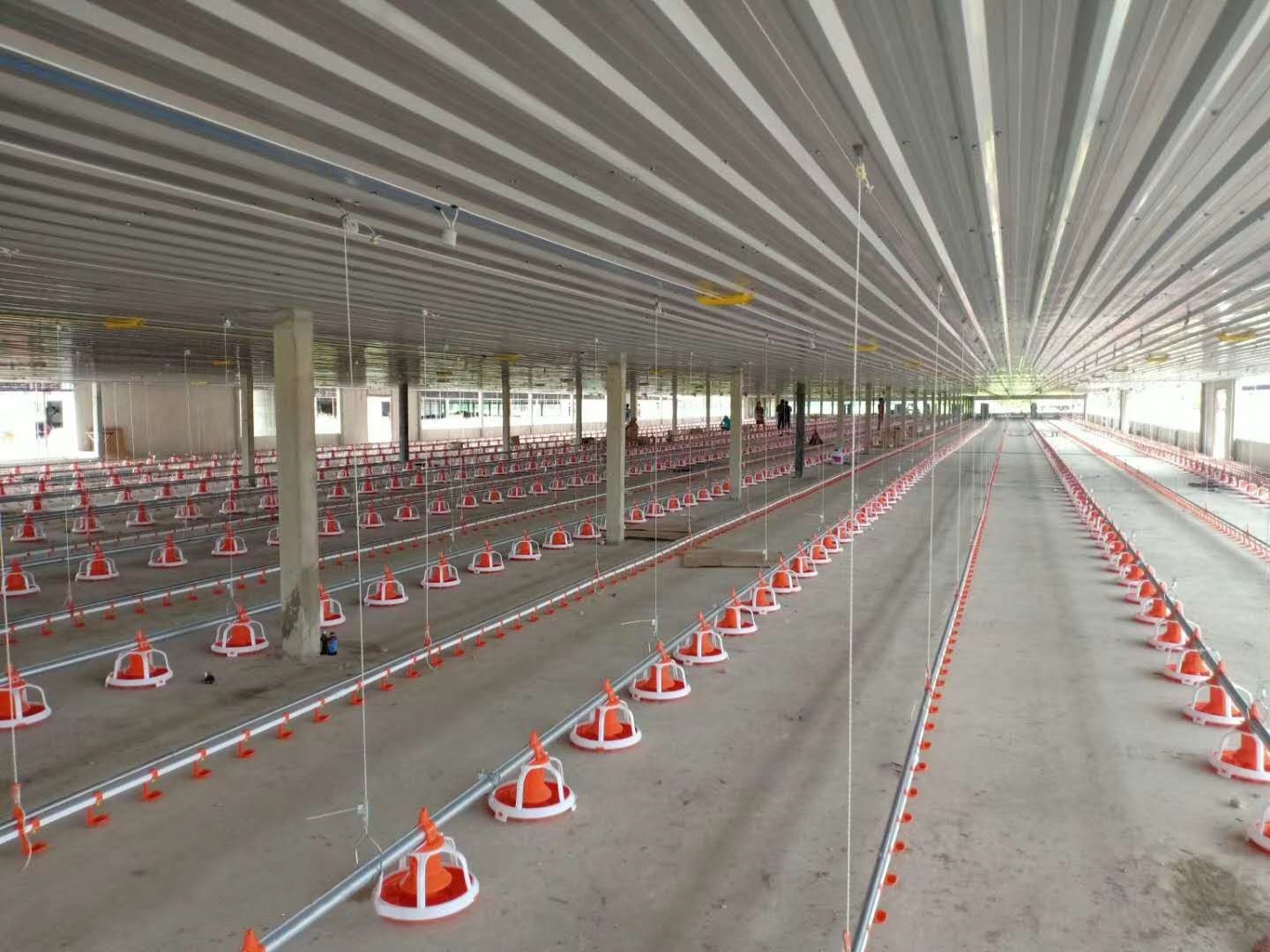

1. Pan Feeding System: Ideal way for whole raising period from brooding to slaughter.

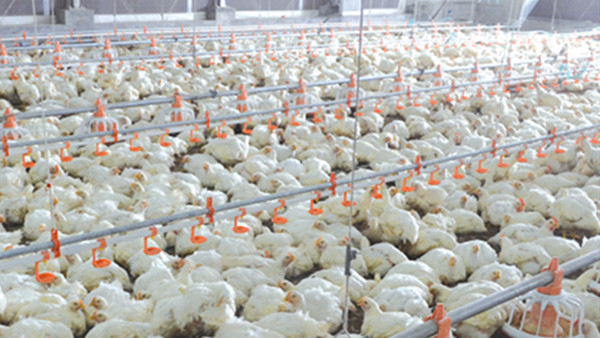

2. Nipple Drinking system: Effective way to supply chicken water and keep the waste dry.
3. Fans and cooling pads system: Keep the poultry house air cool and fresh.
4. Environmental control system: Automatically control the temperature, humidity, light, etc.
5. Fogging system: Regularly disinfecte the poultry house.
6. Heating system: Fuel can be gas or oil. Keep the house warm during winter.

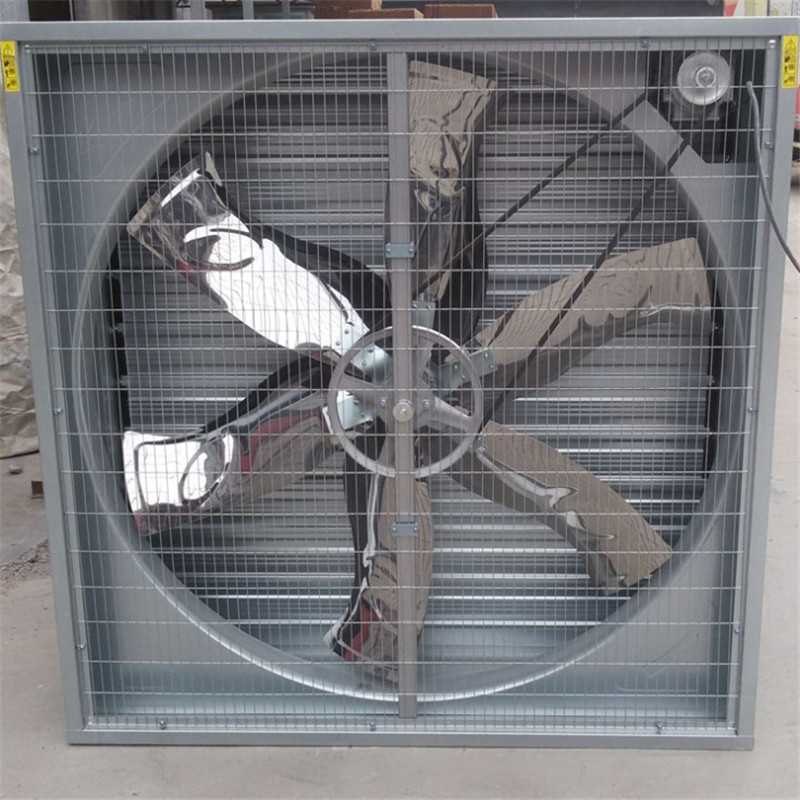

Fans Feature:
1.275g good quality galvanized sheet frame and shutters, durable. Special fan blades shape design ensure large air volume, no deformation, no broken, keep air volume same all the way. Thickness 1.2mm, surface finish BA grade.
2.Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller complete, high corrosion resistance.
3.Chinese famous motor OEM by special design for fan(or you can choose Siemens motor), the first put in the phase lack protection device which would power off when shortage of electricity.
4.Fan bearing adopts imported double-row bearing with special waterproof design, water can’t enter. High strength, lower noise, maintenance free and long service life.
5.Using high strength nylon swung drop hammer opening device to ensue the shutters opening and closing flexibly.
6.Using the most advanced automatic belt tensioner to ensure working efficiency and good performance.
7.Hot-dip galvanized blade support and safe net ensure never rust.
8.Complete new CNC production line improved fan quality up to top grade, aesthetic appearance.

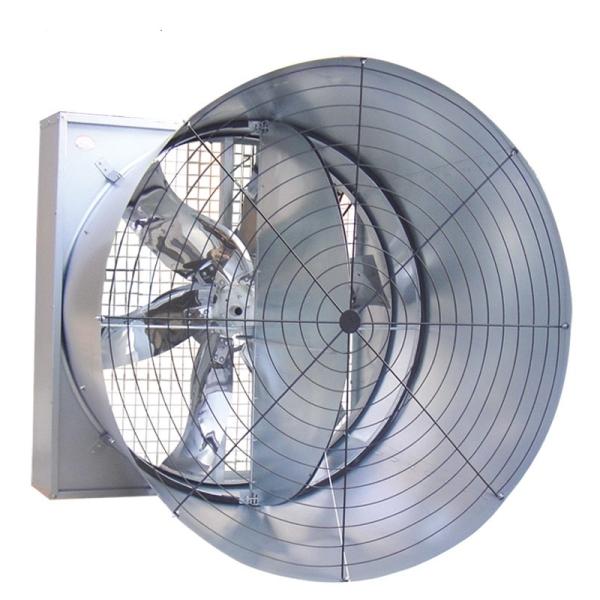

Butterfly Cone Fan Parameter:
| Double door close | Using advanced front double door opening device, small wind resistance, good sealing, high efficiency, lengthened cone design improve exhaust power. |
| Material | Zinc coating weight of Galvanized sheet is 275g/m2,avoiding rust effectively. |
| Rubber sealing | Fan double doors closed with the rubber sealing which effectively avoid air backflow when start fans at different time. Greatly improve the operation efficiency by 15-20% compared with the same power fan. |
| Fan blade | Fan blade is special designed for the biggest efficiency which made of Krupp stainless steel by punch forming. Large air volume, no deformation, no broken, no dust, attractive and durable. Thickness 1.2mm, surface finish BA grade. |
| intelligent dynamic-balance tester | Fan blades are adjusted by intelligent dynamic-balance tester, ensure the fan smooth running, lower vibration, less noise, increase stability. |
| B type belt | Use B type belt, lifespan is 3 times longer than A type belt. |
| Spoort and safe net | Hot-dip galvanized blade support and safe net ensure never rust. |
| CNC production line | Complete new CNC production line improved fan quality up to top grade, aesthetic appearance. |
